流式通信模式

对于特定用例，请参考：[dubbo-samples-triple/pojo](https://github.com/apache/dubbo-samples/tree/master/3-extensions/protocol/dubbo-samples-triple/src/main/java /org/apache/dubbo/sample/tri/pojo);

开启 Triple 的新特性 - Stream (流)

Stream 是 Dubbo3 提供的一种新的调用类型，建议在以下场景中使用 stream

接口需要发送大量数据。这些数据无法放在一个 RPC 请求或响应中，需要分批发送。但是，如果应用层无法解决传统多个 RPC 方法的顺序和性能问题，如果需要保证顺序，则只能串行发送
在流式场景中，数据需要按发送顺序进行处理，数据本身没有明确的边界
在推送场景中，多个消息在同一个调用的上下文中发送和处理

Stream 分为以下三种类型

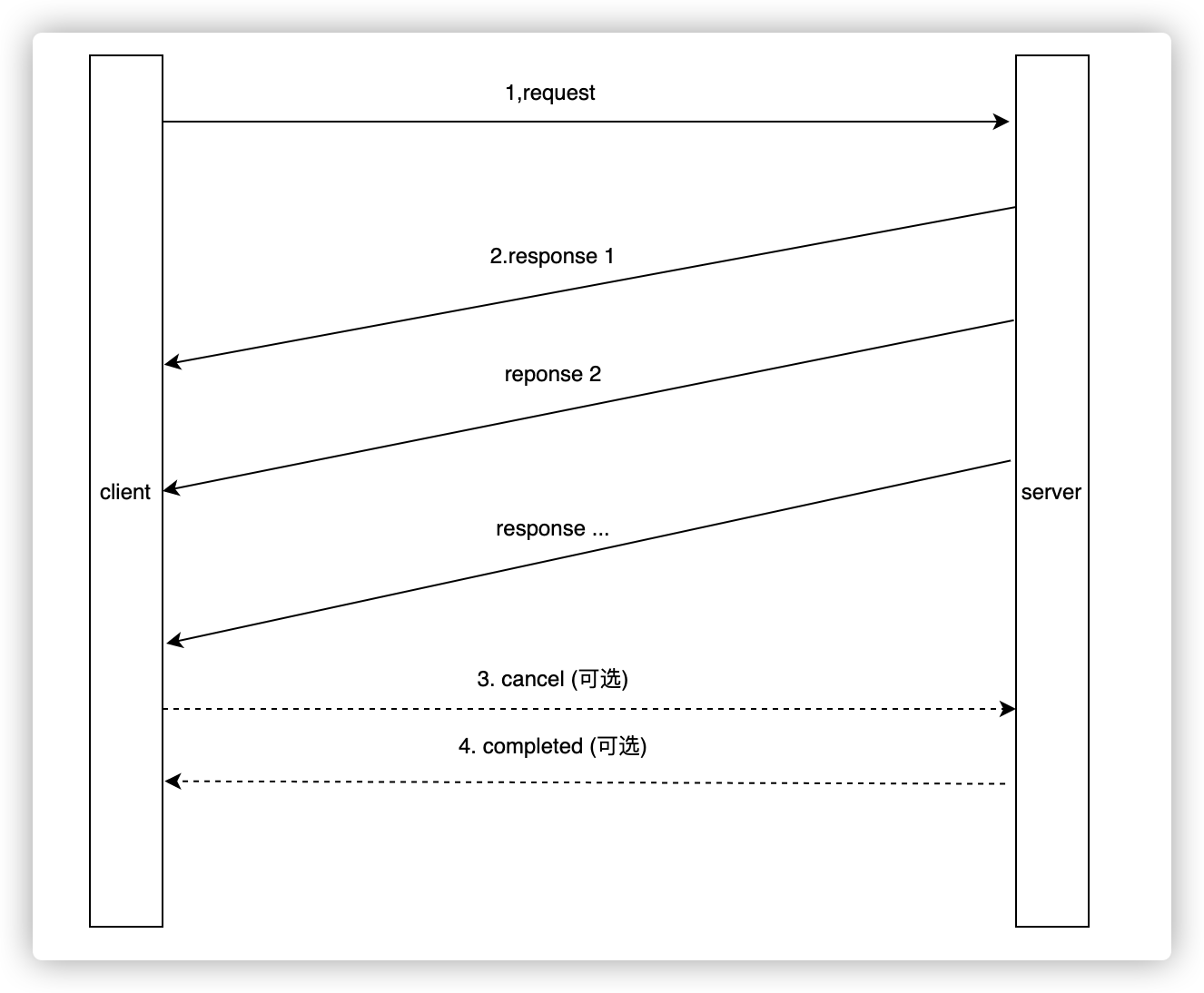

SERVER_STREAM (服务器流)

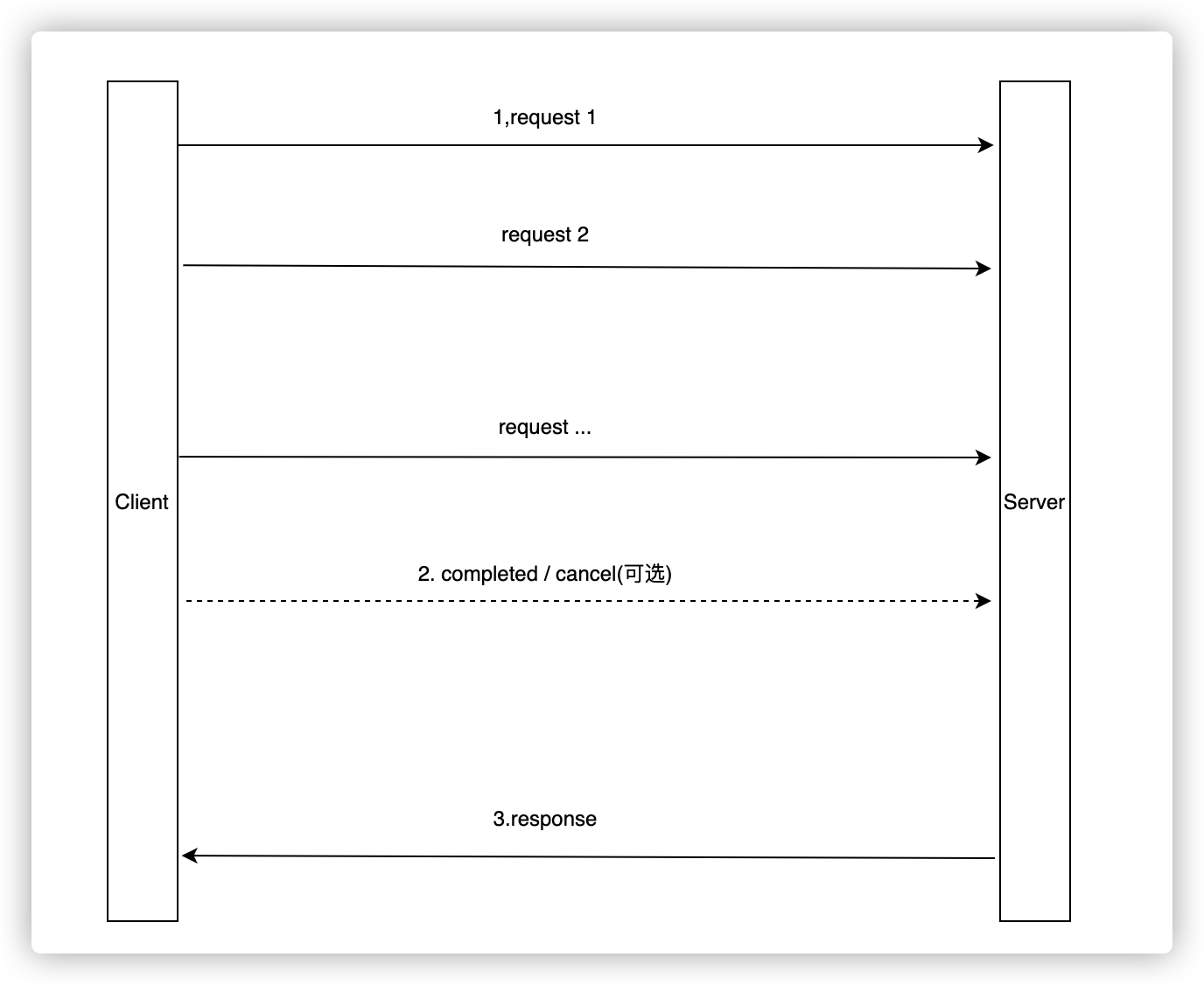

CLIENT_STREAM (客户端流)

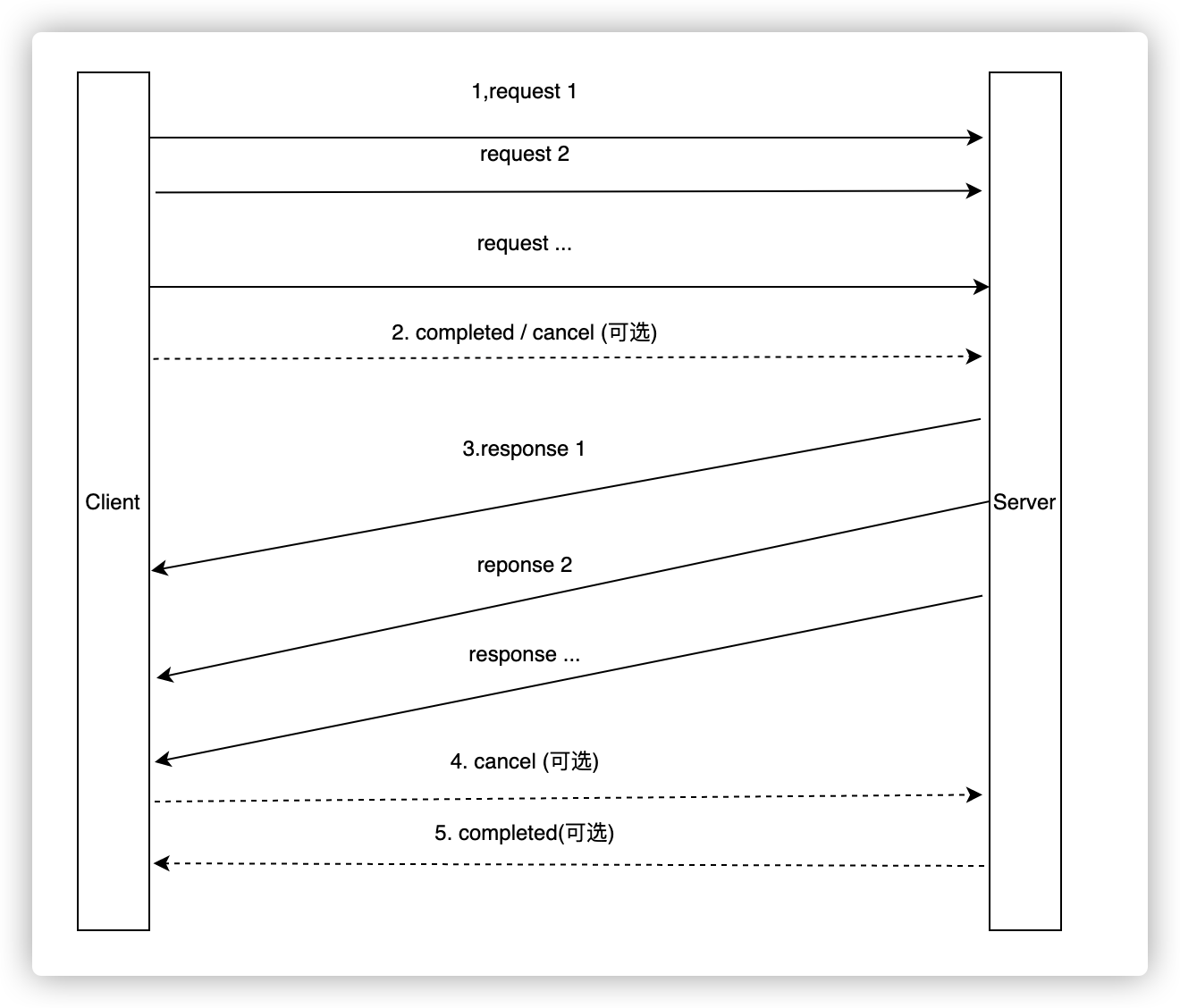

BIDIRECTIONAL_STREAM (双向流)

由于 java 语言的限制，BIDIRECTIONAL_STREAM 和 CLIENT_STREAM 的实现是相同的。

在 Dubbo3 中，流接口声明和使用为 SteamObserver，用户可以使用和实现此接口来发送和处理流数据、异常和结束。

对于 Dubbo2 用户来说，他们可能不熟悉 StreamObserver，它是 Dubbo3 定义的一种流类型。Dubbo2 中没有 Stream 类型，因此它对迁移场景没有影响。

Stream 语义保证

提供消息边界，可以轻松地分别处理消息
严格有序，发送者的顺序与接收者的顺序一致
全双工，无需等待发送
支持取消和超时

非 PB 序列化流

public interface IWrapperGreeter {

     StreamObserver<String> sayHelloStream(StreamObserver<String> response);

     void sayHelloServerStream(String request, StreamObserver<String> response);
}

Stream 方法的输入参数和返回值严格约定。为了防止因编写错误导致的问题，Dubbo3 框架侧会对参数进行检查，如果出现错误则抛出异常。对于 BIDIRECTIONAL_STREAM，需要注意的是，参数中的 StreamObserver 是响应流，返回值参数中的 StreamObserver 是请求流。

实现类

public class WrapGreeterImpl implements WrapGreeter {

     //...

     @Override
     public StreamObserver<String> sayHelloStream(StreamObserver<String> response) {
         return new StreamObserver<String>() {
             @Override
             public void onNext(String data) {
                 System.out.println(data);
                 response.onNext("hello,"+data);
             }

             @Override
             public void onError(Throwable throwable) {
                 throwable. printStackTrace();
             }

             @Override
             public void onCompleted() {
                 System.out.println("onCompleted");
                 response.onCompleted();
             }
         };
     }

     @Override
     public void sayHelloServerStream(String request, StreamObserver<String> response) {
         for (int i = 0; i < 10; i++) {
             response.onNext("hello," + request);
         }
         response.onCompleted();
     }
}

调用方法

delegate.sayHelloServerStream("server stream", new StreamObserver<String>() {
     @Override
     public void onNext(String data) {
         System.out.println(data);
     }

     @Override
     public void onError(Throwable throwable) {
         throwable. printStackTrace();
     }

     @Override
     public void onCompleted() {
         System.out.println("onCompleted");
     }
});


StreamObserver<String> request = delegate.sayHelloStream(new StreamObserver<String>() {
     @Override
     public void onNext(String data) {
         System.out.println(data);
     }

     @Override
     public void onError(Throwable throwable) {
         throwable. printStackTrace();
     }

     @Override
     public void onCompleted() {
         System.out.println("onCompleted");
     }
});
for (int i = 0; i < n; i++) {
     request.onNext("stream request" + i);
}
request.onCompleted();

使用 Protobuf 序列化的流

对于 Protobuf 序列化方式，建议编写 IDL 并使用 compiler 插件进行编译生成。生成的代码大致如下

public interface PbGreeter {

     static final String JAVA_SERVICE_NAME = "org.apache.dubbo.sample.tri.PbGreeter";
     static final String SERVICE_NAME = "org.apache.dubbo.sample.tri.PbGreeter";

     static final boolean inited = PbGreeterDubbo.init();

     //...

     void greetServerStream(org.apache.dubbo.sample.tri.GreeterRequest request, org.apache.dubbo.common.stream.StreamObserver<org.apache.dubbo.sample.tri.GreeterReply> responseObserver);

     org.apache.dubbo.common.stream.StreamObserver<org.apache.dubbo.sample.tri.GreeterRequest> greetStream(org.apache.dubbo.common.stream.StreamObserver<org.apache.dubbo.sample.tri.GreeterReply> responseObserver);
}

完整用例

编写 Java 接口

import org.apache.dubbo.common.stream.StreamObserver;
import org.apache.dubbo.hello.HelloReply;
import org.apache.dubbo.hello.HelloRequest;

public interface IGreeter {
    /**
     * <pre>
     * Sends greeting by stream
     * </pre>
     */
    StreamObserver<HelloRequest> sayHello(StreamObserver<HelloReply> replyObserver);

}

编写实现类

public class IStreamGreeterImpl implements IStreamGreeter {

    @Override
    public StreamObserver<HelloRequest> sayHello(StreamObserver<HelloReply> replyObserver) {

        return new StreamObserver<HelloRequest>() {
            private List<HelloReply> replyList = new ArrayList<>();

            @Override
            public void onNext(HelloRequest helloRequest) {
                System.out.println("onNext receive request name:" + helloRequest.getName());
               replyList.add(HelloReply.newBuilder()
                   .setMessage("receive name:" + helloRequest.getName())
                   .build());
           }

           @Override
           public void onError(Throwable cause) {
               System.out.println("onError");
               replyObserver.onError(cause);
           }

           @Override
           public void onCompleted() {
               System.out.println("onComplete receive request size:" + replyList.size());
               for (HelloReply reply : replyList) {
                   replyObserver.onNext(reply);
               }
               replyObserver.onCompleted();
           }
       };
   }
}

创建 Provider

public class StreamProvider {
    public static void main(String[] args) throws InterruptedException {
        ServiceConfig<IStreamGreeter> service = new ServiceConfig<>();
        service.setInterface(IStreamGreeter.class);
        service.setRef(new IStreamGreeterImpl());
        service.setProtocol(new ProtocolConfig(CommonConstants.TRIPLE, 50051));
        service.setApplication(new ApplicationConfig("stream-provider"));
        service.setRegistry(new RegistryConfig("zookeeper://127.0.0.1:2181"));
        service. export();
        System.out.println("dubbo service started");
        new CountDownLatch(1). await();
    }
}

创建 Consumer

public class StreamConsumer {
    public static void main(String[] args) throws InterruptedException, IOException {
        ReferenceConfig<IStreamGreeter> ref = new ReferenceConfig<>();
        ref. setInterface(IStreamGreeter. class);
        ref. setCheck(false);
        ref.setProtocol(CommonConstants.TRIPLE);
        ref. setLazy(true);
        ref. setTimeout(100000);
        ref. setApplication(new ApplicationConfig("stream-consumer"));
        ref.setRegistry(new RegistryConfig("zookeeper://mse-6e9fda00-p.zk.mse.aliyuncs.com:2181"));
        final IStreamGreeter iStreamGreeter = ref. get();

        System.out.println("dubbo ref started");
        try {

            StreamObserver<HelloRequest> streamObserver = iStreamGreeter.sayHello(new StreamObserver<HelloReply>() {
                @Override
                public void onNext(HelloReply reply) {
                    System.out.println("onNext");
                    System.out.println(reply.getMessage());
                }

                @Override
                public void onError(Throwable throwable) {
                    System.out.println("onError:" + throwable.getMessage());
                }

                @Override
                public void onCompleted() {
                    System.out.println("onCompleted");
                }
            });

            streamObserver.onNext(HelloRequest.newBuilder()
                .setName("tony")
                .build());

            streamObserver.onNext(HelloRequest.newBuilder()
                .setName("nick")
                .build());

            streamObserver.onCompleted();
        } catch (Throwable t) {
            t. printStackTrace();
        }
        System.in.read();
    }
}

运行 Provider 和 Consumer，可以看到请求正常返回
onNext
receive name:tony
onNext
receive name:nick
onCompleted

常见问题

protobuf 类未找到

由于 Triple 协议底层需要依赖 protobuf 协议进行传输，即使定义的服务接口没有使用 protobuf，也需要将 protobuf 依赖引入环境中。

         <dependency>
    <groupId>com.google.protobuf</groupId>
    <artifactId>protobuf-java</artifactId>
    <version>3.19.4</version>
</dependency>
